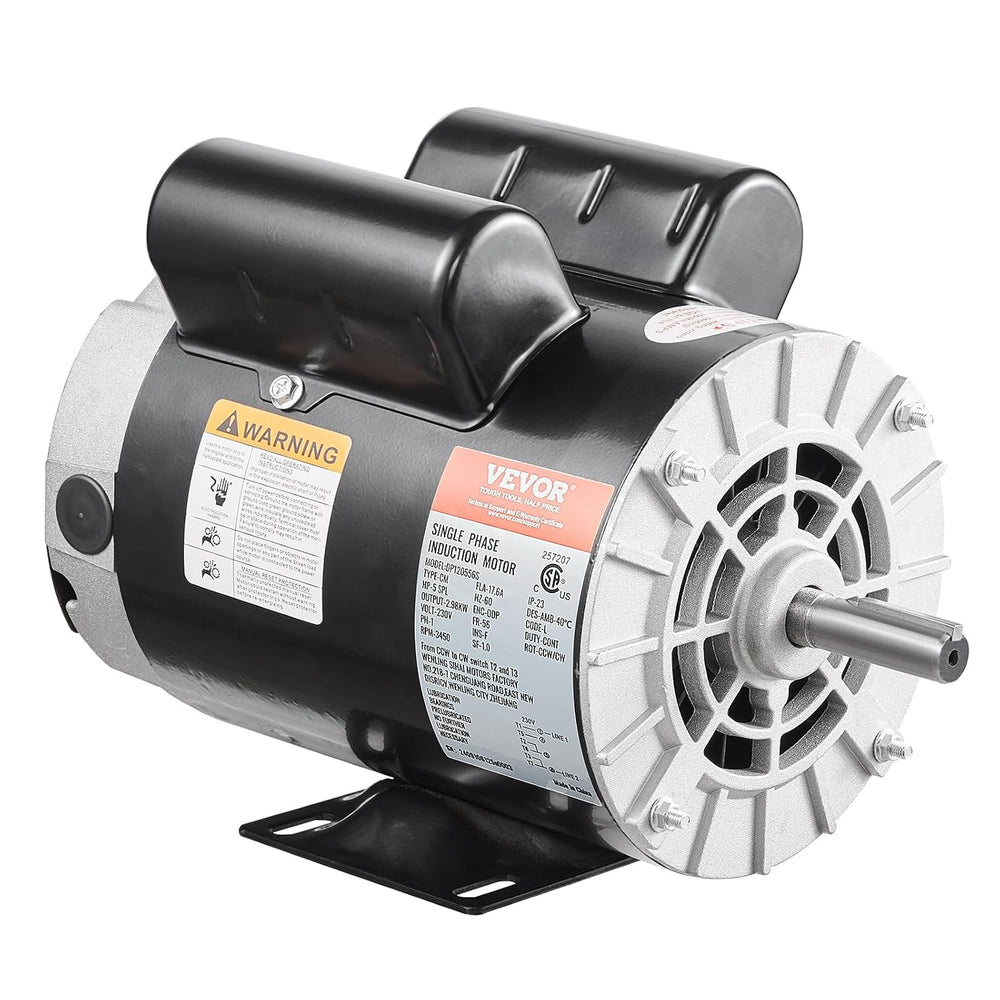

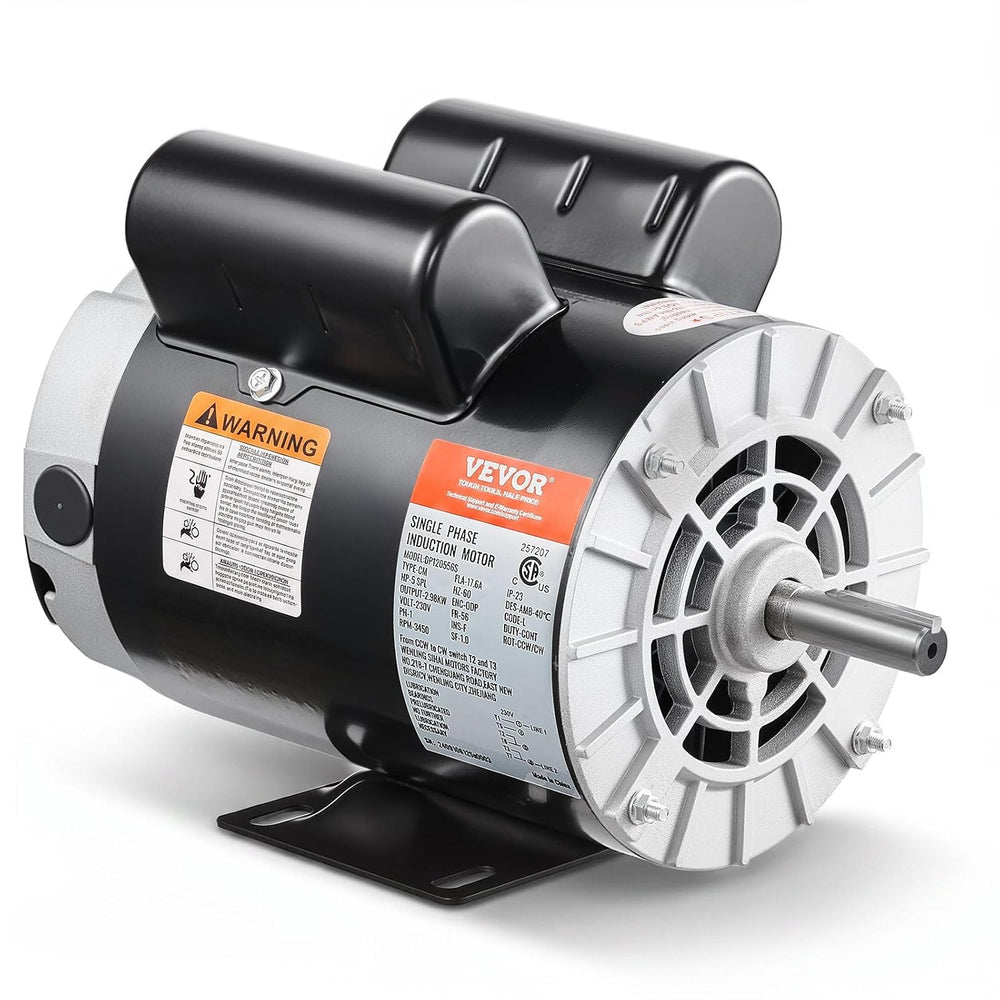

VEVOR 5HP SPL Air Compressor Electric Motor 230V 17.6Amps 56 Frame 3450RPM
US$298.62
Arrives as soon as ✓ Free shipping — over $200Description
Product Details Item Weight:34.6 pounds Voltage:230 volts Wattage:3730 watts Included Components:1 x Air Compressor Motor Number of Items:1 Unit Count:1 Count Model Name:5HP SPL Air Compres...
Delivery & Returns
Free shipping $200+
Orders of $200 or more ship free. No code needed.
Reviews
Handykeep
More options
Product Details
- Item Weight:34.6 pounds
- Voltage:230 volts
- Wattage:3730 watts
- Included Components:1 x Air Compressor Motor
- Number of Items:1
- Unit Count:1 Count
- Model Name:5HP SPL Air Compressor Electric Motor
- Part Number:5HP SPL Air Compressor Electric Motor
- Model:DP120556S
- Item Highlight:5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, Copper Wire Motor, CW/CCW Rotation (Factory Setting is CCW)
- Number of Packs:1
- Speed:3450 rpm
- Horsepower:5 hp
- Amperage:17.6
- Item Dimensions W x H:11.6"W x 8.3"H
- Material Type:Steel plate, copper wire, silicon steel, aluminum
About this item

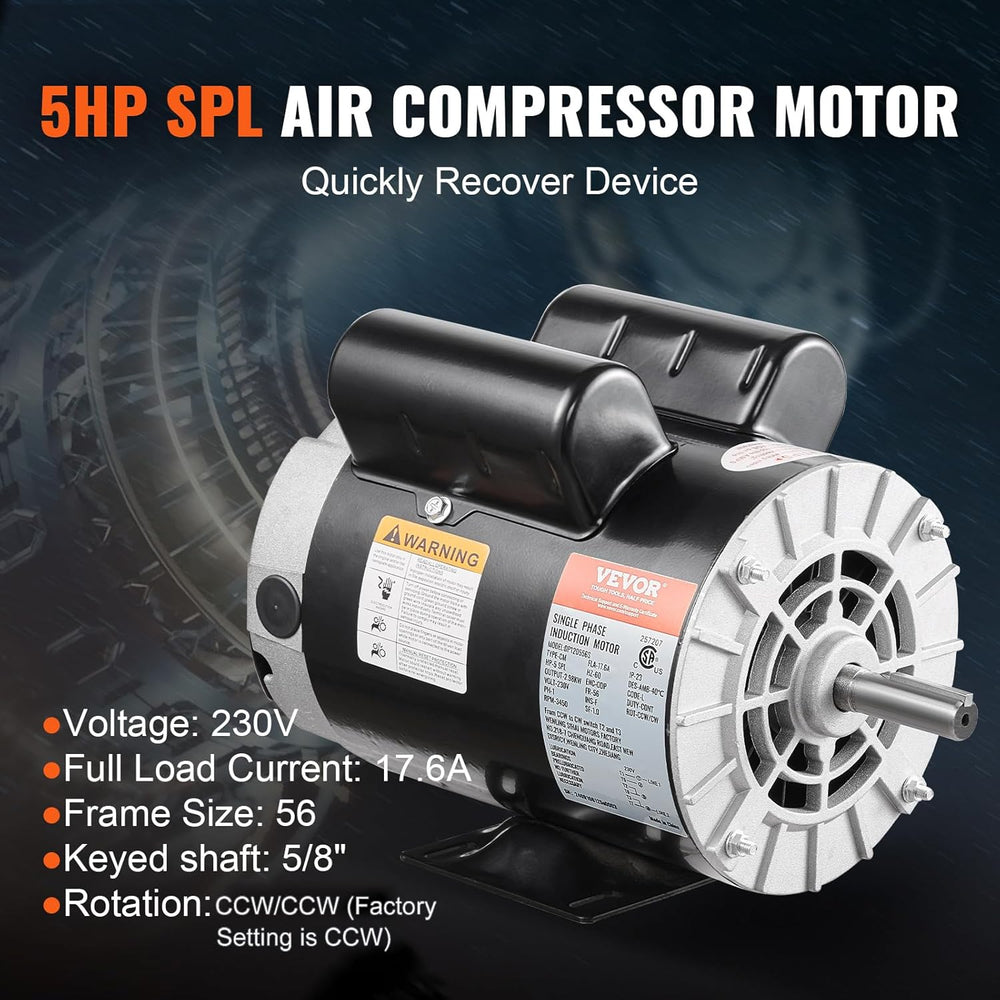

- 5HP SPL Air Compressor Motor: 5HP SPL 3450 RPM, Single Phase, Full Load Amps: 17.6A, 230V, 2 Pole.
- Frame Type: 56 Frame, 5/8" Keyed shaft, Shaft length-1.88".
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

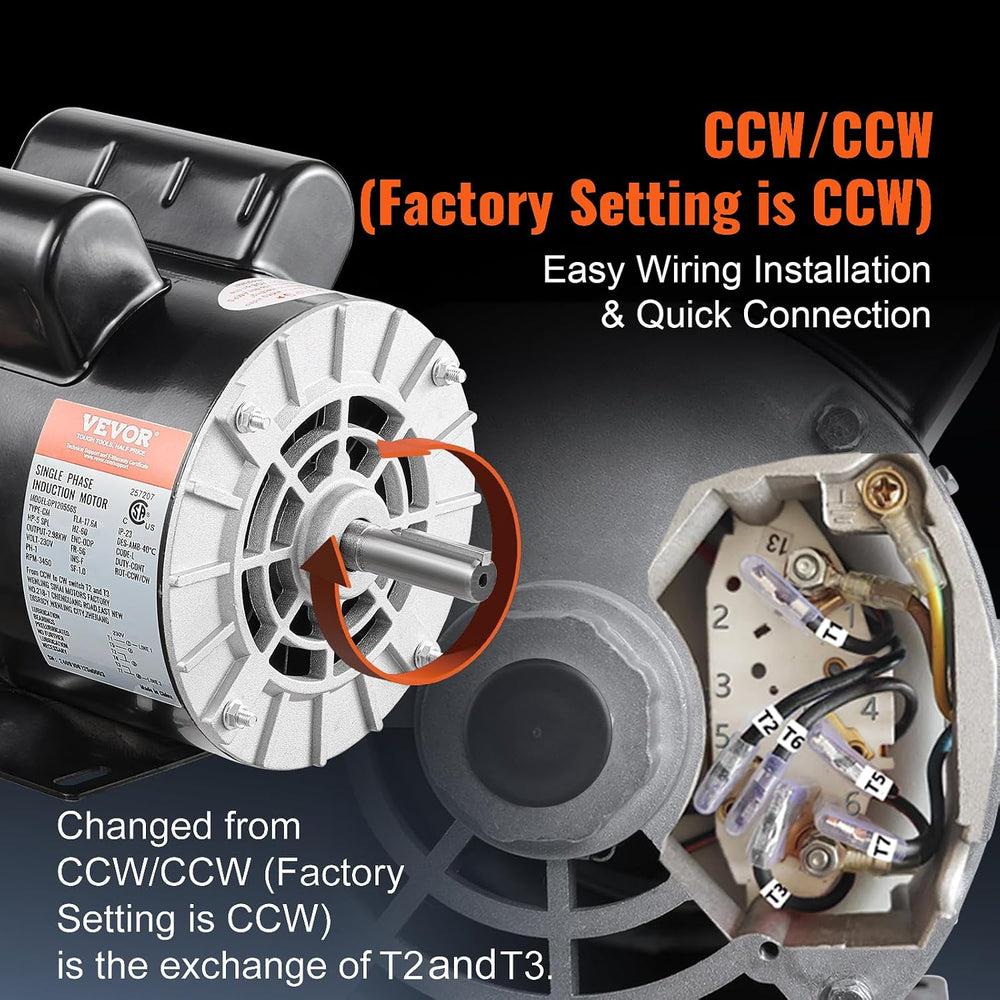

- Dual Rotation Direction: Motor is Reversible for CW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.

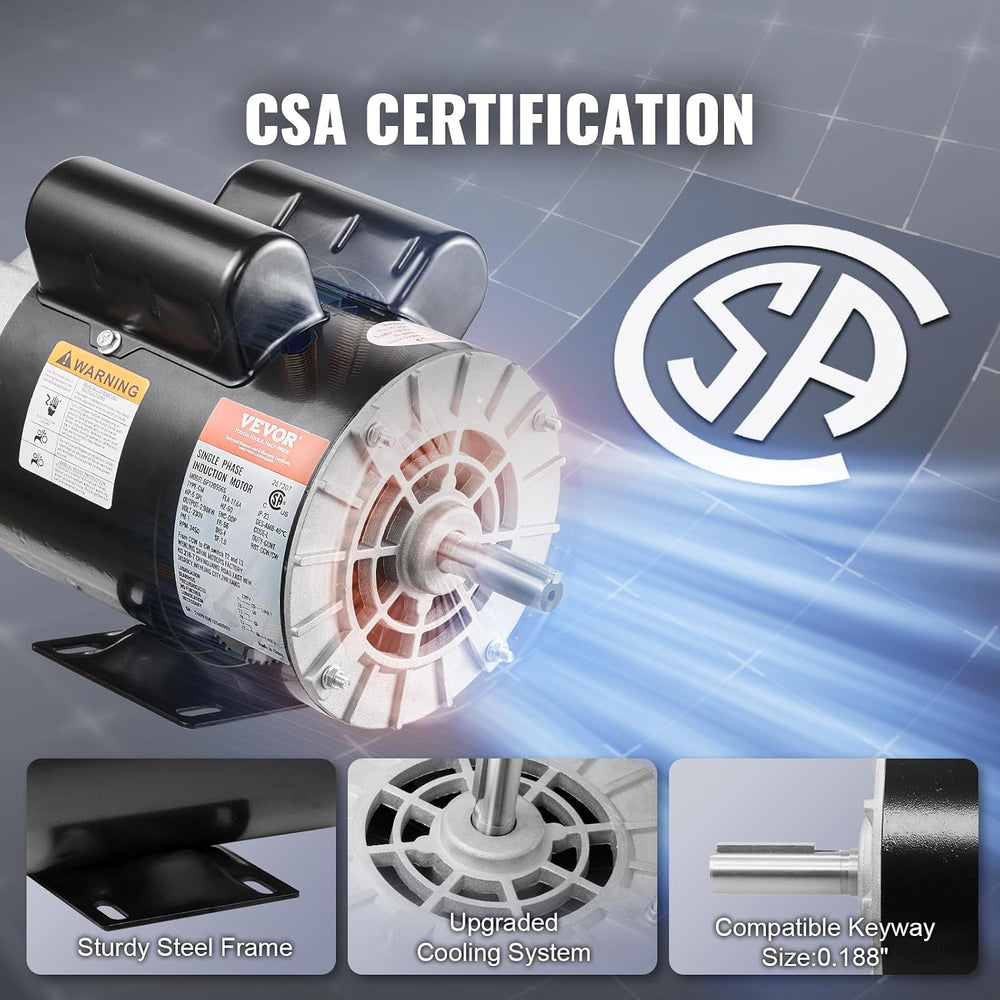

- Safe & Durable: Tested with CSA certification. A rolled steel shell, fast heat dissipation and compatible keyed shaft for longtime usage.
- Please Note: The circuit breaker supplied by the customer should be 45 amps.

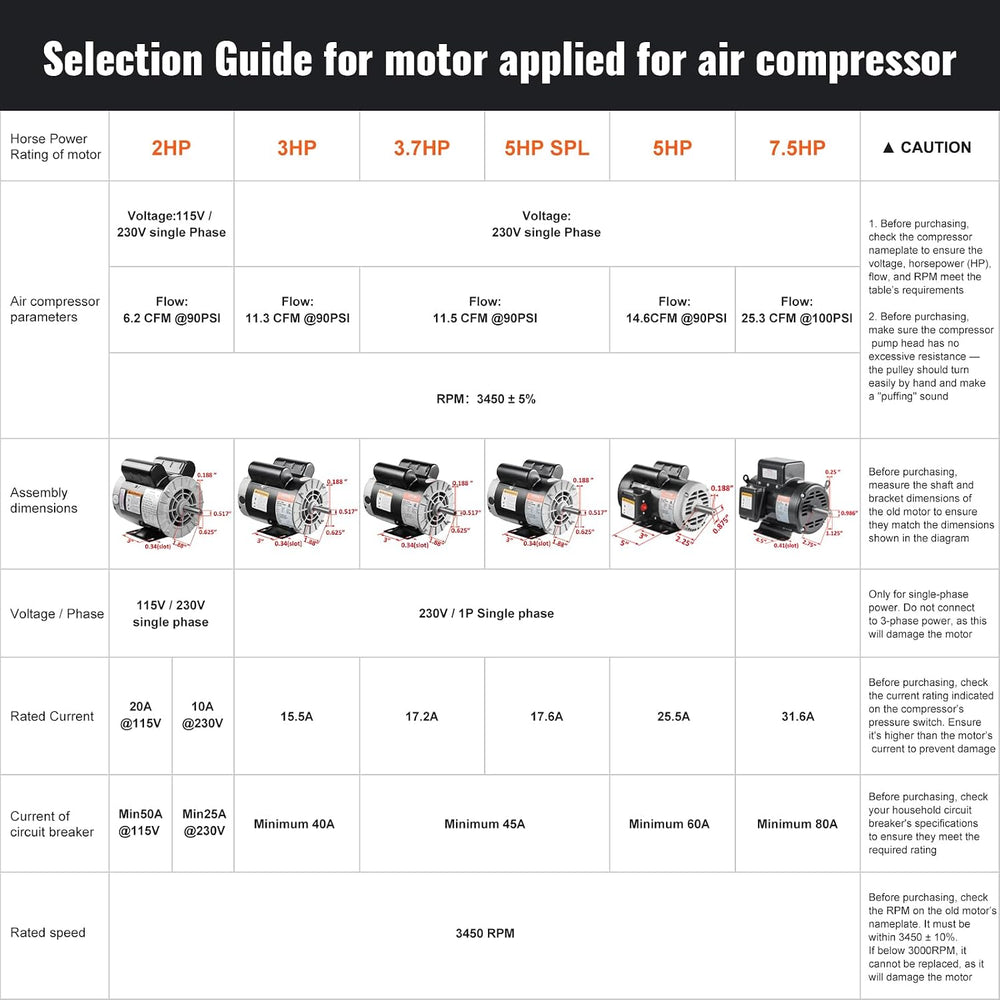

- Friendly Reminder: We have added one purchase guide image for your reference. You can click on the image details to view it.
