Universal Waterproof 12-24V AC/DC Metal Wired Keypad Stand Alone Access Controller for Gate Opener Operator Garage Door Opener and Access Control Security System, Upgraded KPR2000 Keypad

Product Details

• Color:Silver
• Item Weight:2 pounds

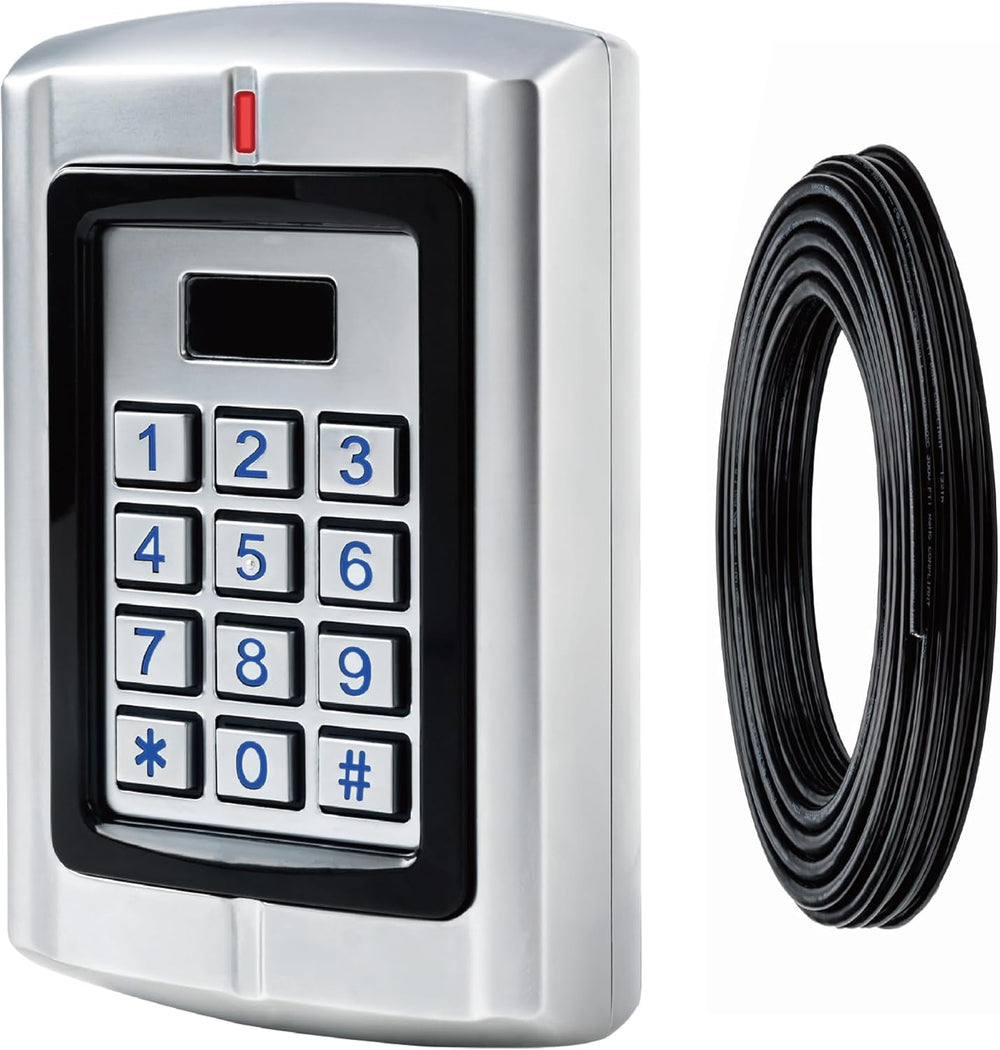

• Included Components:10-28VAC/DC Metal Case Wired Keypad, 16 Ft. Extension Cable and Hardware
• Number of Items:1
• Part Number:HP001
• Warranty Description:1 Year Seller
• Model:HP001
• Display Type:LED
• Material Type:Metal
• Item Dimensions L x W x H:5"L x 3.23"W x 1.14"H

About this item

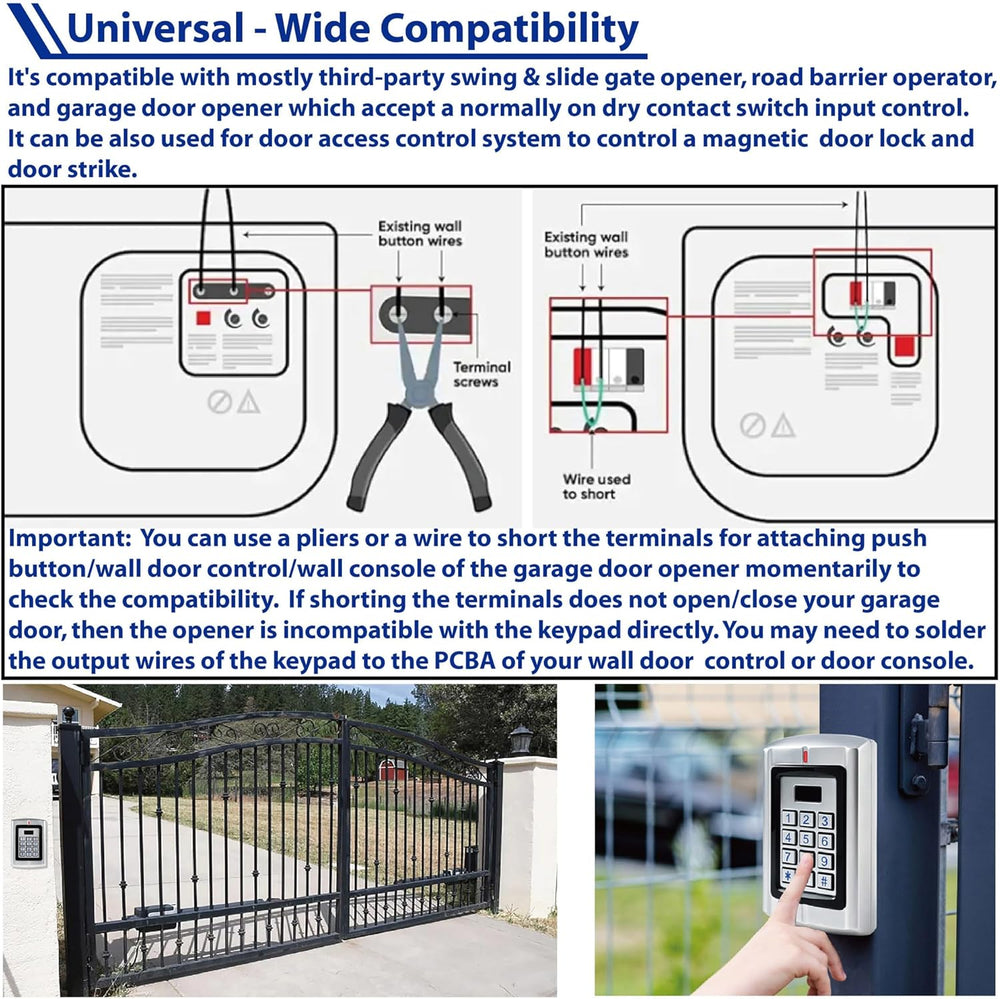

• Universal - The keyless wired keypad has a SPDT relay with adjustable output time makes it's ideal for controlling an automatic gate opener/operator, handicap & garage door opener (accepts an normally open dry contact switch input), magnetic lock and door strike. It's compatible with mostly gate opener & barrier operator such as Liftmaster, Doorking, Viking, FAAC, Eagle, Ramset, Maximum Controls, Mighty Mule, GTO, Ghost Controls, Topens CO-Z, Jujiang, VEVEOR, PLATINUM, APOLLO, BFT, OSCO, Elite, SEA, ZUMI and Jieli gate openers! The 10-28VDC/AC wide input range makes it can be powered by 12V or 24V AC/DC directly which is the auxiliary power output voltage of most of gate operator/opener!

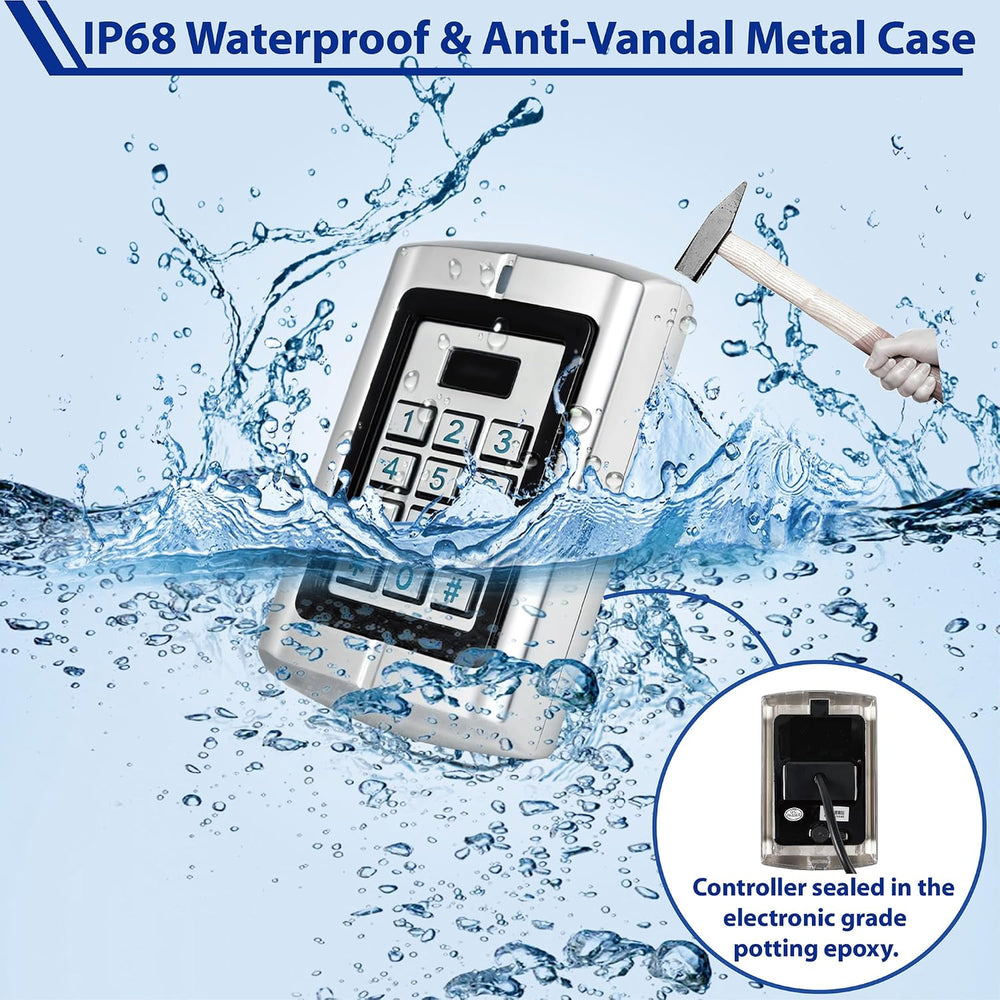

• Waterproof (ip68) & Security - All the electronic components are sealed in the electronic grade potting epoxy. It's designed to function reliably in all weather conditions, making it perfect for outdoor installations. The zinc alloy enclosure ensures the device is tamper-proof and built to last, even in high-security environments, such as bank, hospital, school and prison. The anti-tamper alarm feature can prevents unauthorized attempts to breach the system with built-in security alarms!

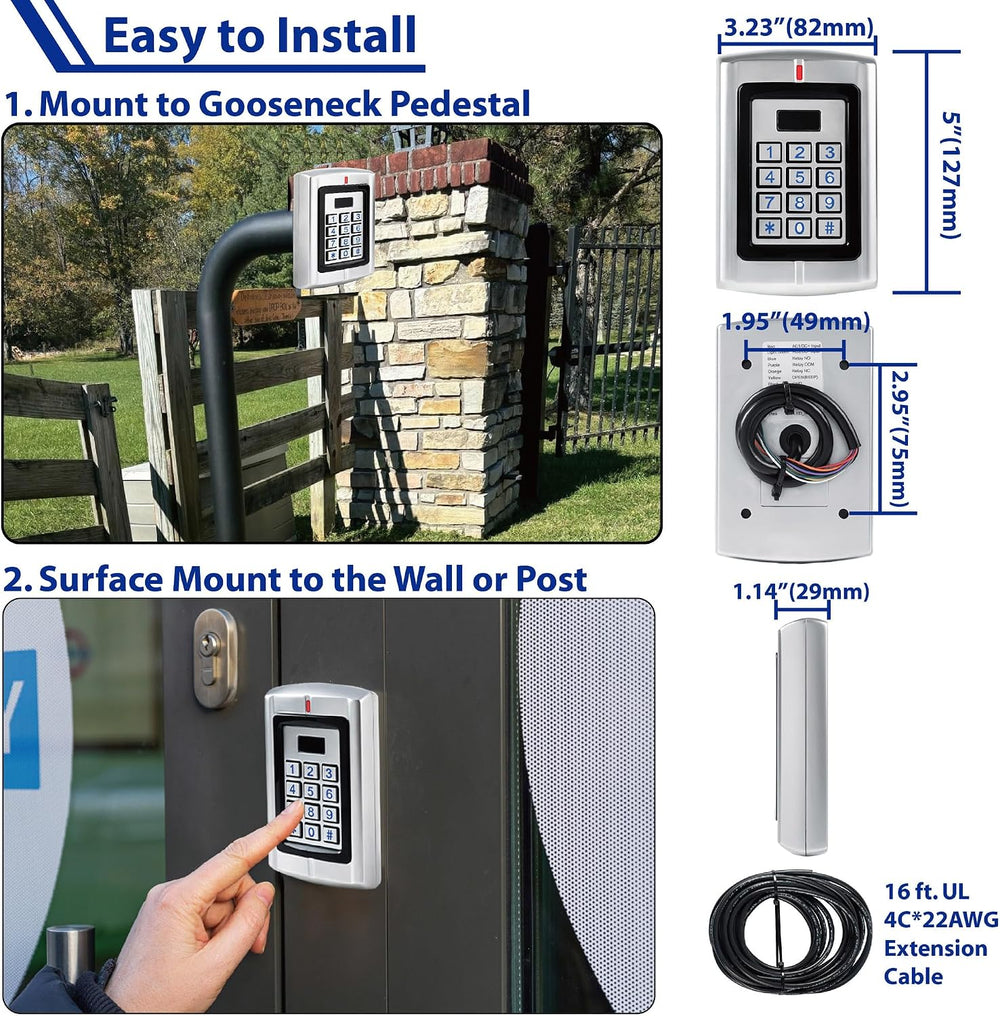

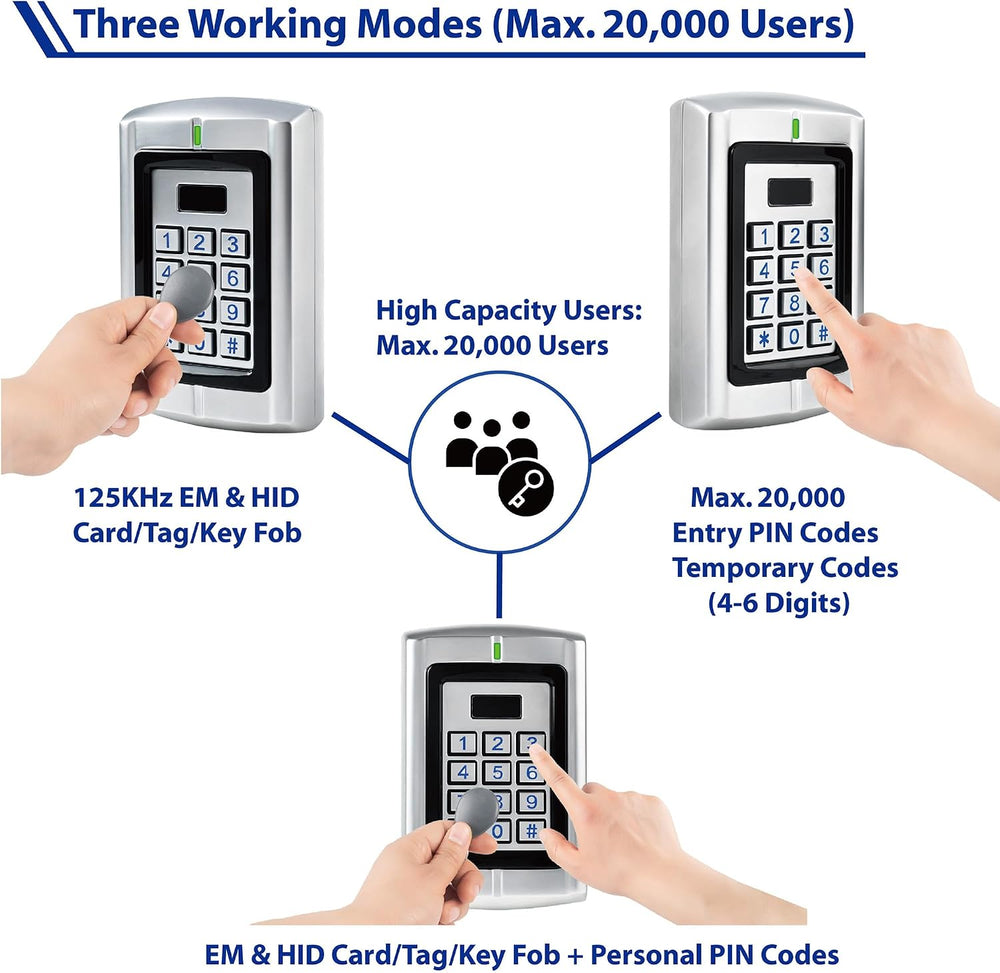

• EASY TO INSTALL AND PROGRAM (MAX. 20000 Users) - The keypad which comes with a 16.6 ft. (5 meters) 4-core cable can be mounted to the wall or the pedestal post easily! It can be configured to three working mode, (1) proximity card /key chain or entry code PIN (factory default), (2)proximity card/key chain only, (3)proximity card /key chain and entry code PIN.The s entry code PIN could be set to 3 to 6 digits. Multiple entry codes setting system makes it's easy to program and manage temporary entry code PIN for the guest/deliveryman. The keypad supports 125KHz EM or HID proximity card/tag The card /key chain can be easily programmed to the keypad by manager add/delete card.

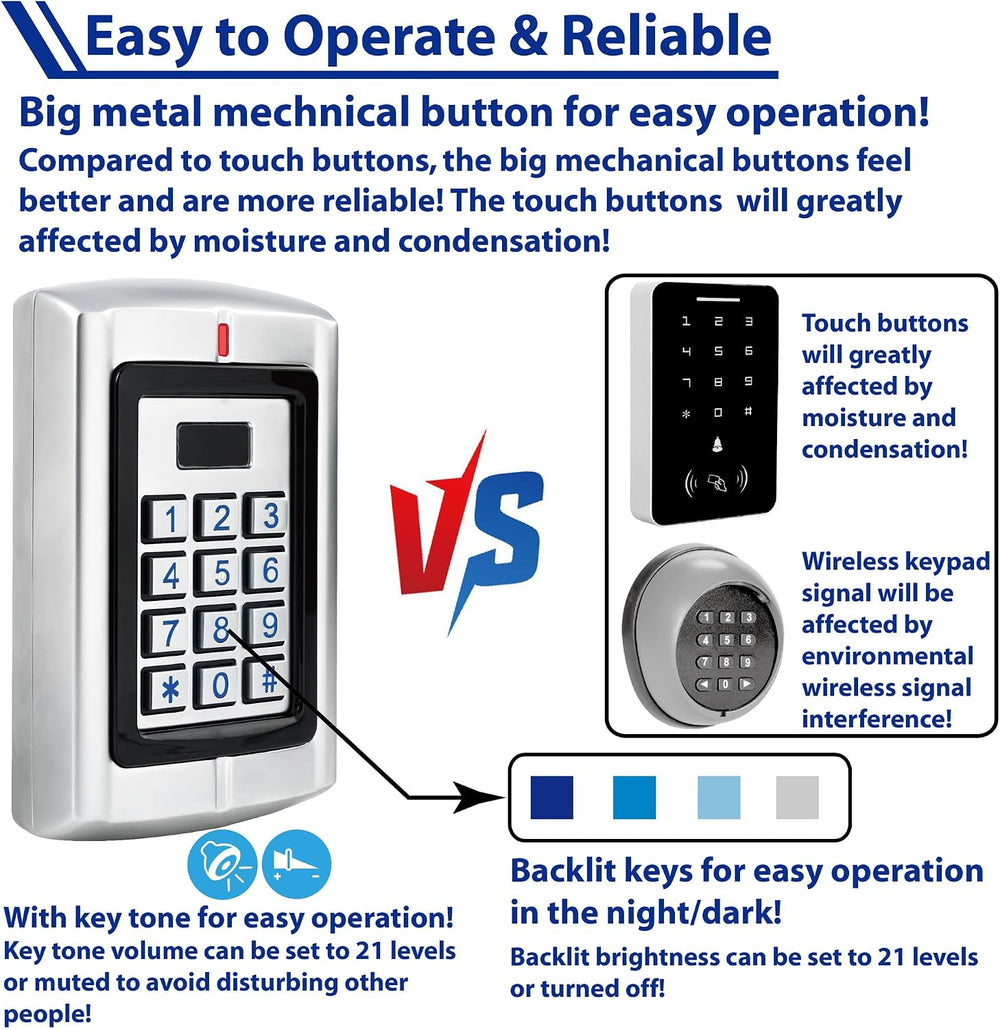

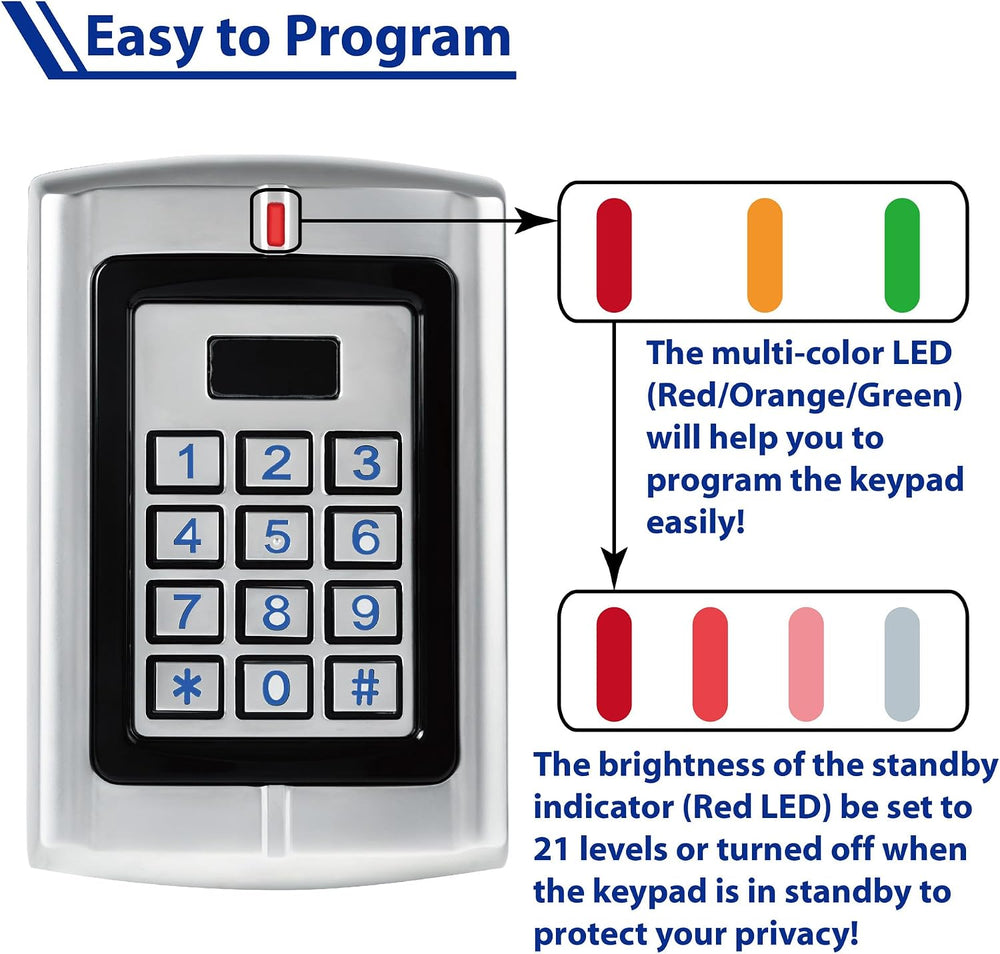

• Adjustable Key Volume and Backlight Brightness- The keypad has a backlit 4*3 digits keyboard which makes it can be easily operated in the night/dark. The machine makes a sound every time a key is pressed. The key volume can be set to 21 levels or muted to avoid disturbing the neighbor when inputting the code in the early morning or night. The brightness of standby LED light and backlight can also be set to 21 levels or turned off when the keypad is in standby to protect your privacy. The backlight can be configured to 3 modes, normally on, normally off or automatic darken after delay time as your need!
• Professional Pre-sales and After-sales Service - We have professional electrical engineers with many years of experience in the electrical industry. We will provide you with professional technical support if you have any question about wiring and building an access control system related to this product. You can email us (haupowfo@outlook.com) and we gua-rantee to reply in 24 hours!
