Product Overview

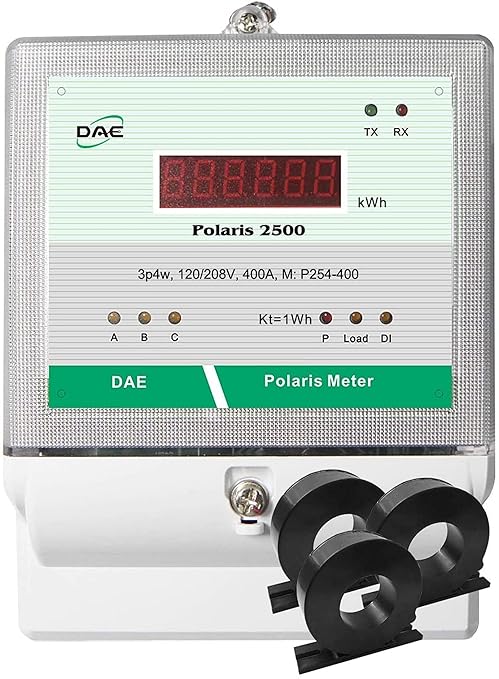

The DAEControls DAE P254-400-S KIT is a Electrical Boxes product by DAEControls. It features ul/cul listed. conform to ansi c12.1 and c12.20 national accuracy.
Key Features

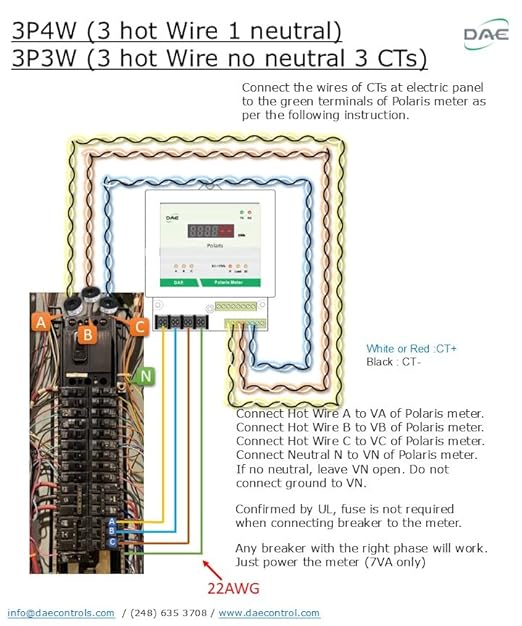

- UL/cUL Listed. Conform to ANSI C12.1 and C12.20 national accuracy standards. Revenue-grade 0.5% accuracy. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter. The meter is powered by VA and VB. VC just takes reference of voltage from hot wire C and does not need fuse. Please connect the wiring as per 5th picture.

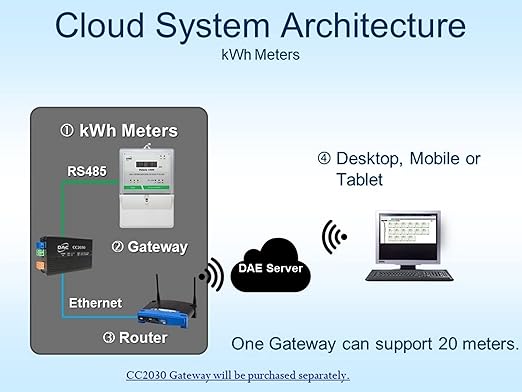

- DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

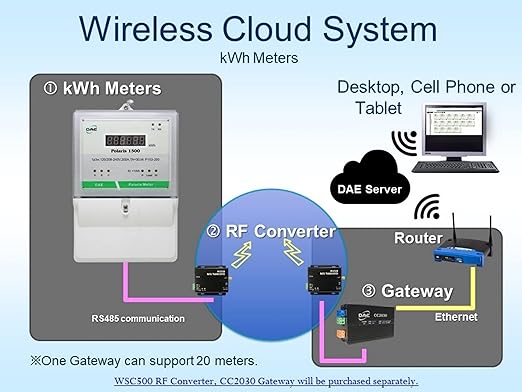

- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use (4th picture).

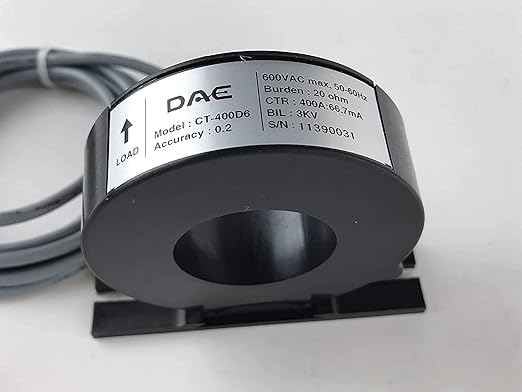

- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
- For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
Why Choose the DAEControls DAE P254-400-S KIT
The DAEControls DAE P254-400-S KIT offers ul/cul listed. conform to ansi c12.1 and c12.20 and dae cloud metering (2nd picture) available with dae. These features make the DAEControls DAE P254-400-S KIT a strong option in the Electrical Boxes category.
Best For
The DAEControls DAE P254-400-S KIT is best suited for everyday electrical boxes needs.
Quick Summary
The DAEControls DAE P254-400-S KIT is a Electrical Boxes product by DAEControls. Brand: DAE. Power Source: Corded Electric. Style: W/ RS485, Solid CTs. Color: White. Item dimensions L x W x H: 7.42 x 5 x 2.24 inches.
Product Specifications
| Specification | Details |
|---|---|
| Brand | DAE |
| Power Source | Corded Electric |
| Style | W/ RS485, Solid CTs |
| Color | White |
| Item dimensions L x W x H | 7.42 x 5 x 2.24 inches |
